Hyundai Excel Gravel Rally Coilover Kit
HYUNDAI EXCEL GRAVEL RALLY COILOVER KIT
The Hyundai Excel suspension kit from Supashock is a high performance design and draws on technology derived from suspension systems developed for industries including motorsport, mining and even military vehicles.
The Supashock Hyundai Excel Gravel Rally Coilover Kit has been developed to maximise the performance of the Hyundai Excel for motorsports and gravel rally racing worldwide. Supashock’s inverted strut design results in a much stronger strut than standard strut designs, with proven reliability in the category. The dampers were tuned over a long testing regime, with 30 ‘clicks’ of adjustment for fine tuning. The dampers are proven to get the most out of the Hyundai Excel chassis on tracks all around Australia, with many years of success in Circuit Excel Racing.
FEATURES
- 33 clicks of damping adjustment (rebound and compression combined)
- Application tuned damping for maximum performance
- Inverted Monotube strut design - front and rear
- Shock body diameter - 55mm
- Front strut length - 320mm
- Rear strut length - 280mm
- Adjustable spring seat
- Adjustable strut foot
- Fully-threaded body
- Pillowball top mounts - front and rear
- Camber adjustable top mounts - front
- Helper springs (helps to keeps main spring engaged)
- Re-buildable / serviceable
INCLUDES

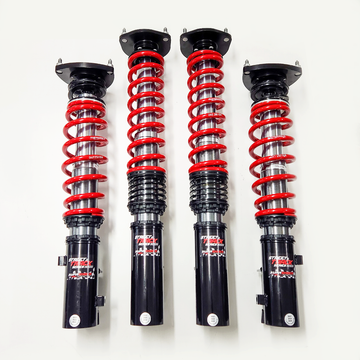

- 2x front struts
- 2x rear struts
- 2x C-spanners
Unique Progressive-Digressive Damper Curve
Supashock’s unique progressive-to-digressive damping curve offers significant benefits by transitioning from progressive damping in soft settings to digressive damping in stiffer settings.
Enhanced Comfort in Soft Settings
Progressive damping provides smoother resistance at lower speeds, effectively absorbing small bumps and irregularities, ensuring a comfortable ride when you want it.
Improved Performance and Control in Stiff Settings
Digressive damping at higher stiffness settings delivers strong force at low shaft speeds, enhancing control for body roll, braking, and cornering. The damping force plateaus, preventing excessive harshness and allowing quick suspension reactions.
Ride Height Adjustment
Supashock Street & Track Coilovers feature fully-threaded damper bodies.
This allows you to adjust your overall damper length via the strut foot, and adjust your ride height via the spring perch.
Adjusting the spring perch alters the pre-load on the spring, however does not alter the spring rate which is determined by the design of the spring itself.
Monotube Damper Design
Supashock's advanced monotube damper gives you damping technology derived from nearly two-decades of V8 Supercars development.
Monotube damping separates the damper oil from the high-pressure nitrogen gas. If the two were able to mix (as they do in twin-tube dampers), the gas will cavitate within the oil causing 'damper fade,' severely impacting performance.
For ultimate performance, choose Supashock's Inverted Monotube damper option (pictured), available on selected vehicle models.
The inverted strut increases the rigidity of the unit, giving greater stength and performance.
Your satisfaction is important to us!
All Supashock Street & Track Series Coilovers come with a 12-month limited warranty. For more information, visit our Warranty Policy page.
